主题
LayoutControl 继承自： Control, BaseControl
参与页面布局的可视化控件的基类。
LayoutControl 在 Control 的基础上扩展了通用的可视化布局能力，包括：
- 显式尺寸（
width、height、aspect_ratio）； - 绝对定位（
left、top、right、bottom）； - 父空间内放置（
align、margin）； - 二维变换（
rotate、scale、offset、flip、transform）； - 上述属性的隐式动画（
animate_*）； - 布局/动画生命周期事件（
on_size_change、on_animation_end）。
可用 LayoutControl 作为在页面上渲染的自定义可视化控件的基类； 弹窗类控件请使用 DialogControl，非可视化集成请使用 Service。

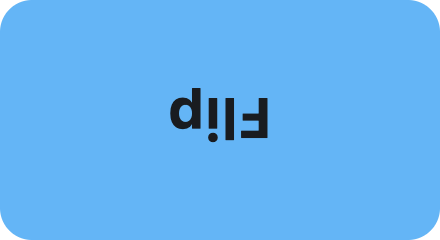

示例
python
import flet as ft
def main(page: ft.Page):
page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
page.spacing = 20
def toggle_x(e: ft.Event[ft.Button]):
card.flip.flip_x = not card.flip.flip_x
card.update()
def toggle_y(e: ft.Event[ft.Button]):
card.flip.flip_y = not card.flip.flip_y
card.update()
page.add(
ft.SafeArea(
content=ft.Column(
spacing=20,
horizontal_alignment=ft.CrossAxisAlignment.CENTER,
controls=[
card := ft.Container(
width=220,
height=120,
bgcolor=ft.Colors.BLUE_300,
border_radius=16,
alignment=ft.Alignment.CENTER,
content=ft.Text("Flip me", size=24, weight=ft.FontWeight.BOLD),
flip=ft.Flip(
flip_x=False,
flip_y=False,
filter_quality=ft.FilterQuality.MEDIUM,
),
),
ft.Row(
alignment=ft.MainAxisAlignment.CENTER,
controls=[
ft.Button("Toggle X", on_click=toggle_x),
ft.Button("Toggle Y", on_click=toggle_y),
],
),
],
),
)
)
if __name__ == "__main__":
ft.run(main)

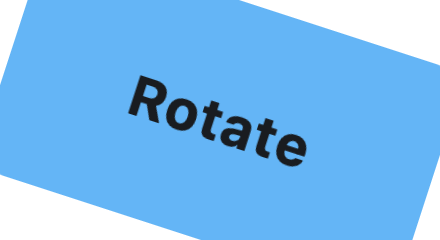

python
from math import pi
import flet as ft
def main(page: ft.Page):
page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
page.vertical_alignment = ft.MainAxisAlignment.CENTER
page.add(
ft.SafeArea(
content=ft.Container(
width=220,
height=120,
bgcolor=ft.Colors.BLUE_300,
border_radius=16,
alignment=ft.Alignment.CENTER,
content=ft.Text("Rotate", size=28, weight=ft.FontWeight.BOLD),
rotate=ft.Rotate(
angle=pi / 10,
alignment=ft.Alignment.CENTER,
filter_quality=ft.FilterQuality.MEDIUM,
),
),
)
)
if __name__ == "__main__":
ft.run(main)

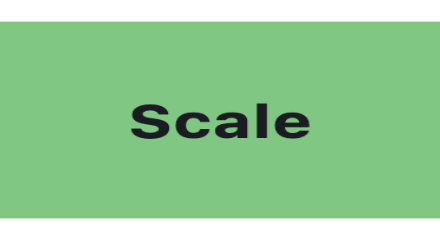

python
import flet as ft
def main(page: ft.Page):
page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
page.vertical_alignment = ft.MainAxisAlignment.CENTER
page.add(
ft.SafeArea(
content=ft.Container(
width=220,
height=120,
bgcolor=ft.Colors.GREEN_300,
border_radius=16,
alignment=ft.Alignment.CENTER,
content=ft.Text("Scale", size=28, weight=ft.FontWeight.BOLD),
scale=ft.Scale(
scale_x=1.18,
scale_y=0.82,
alignment=ft.Alignment.CENTER,
filter_quality=ft.FilterQuality.MEDIUM,
),
),
)
)
if __name__ == "__main__":
ft.run(main)

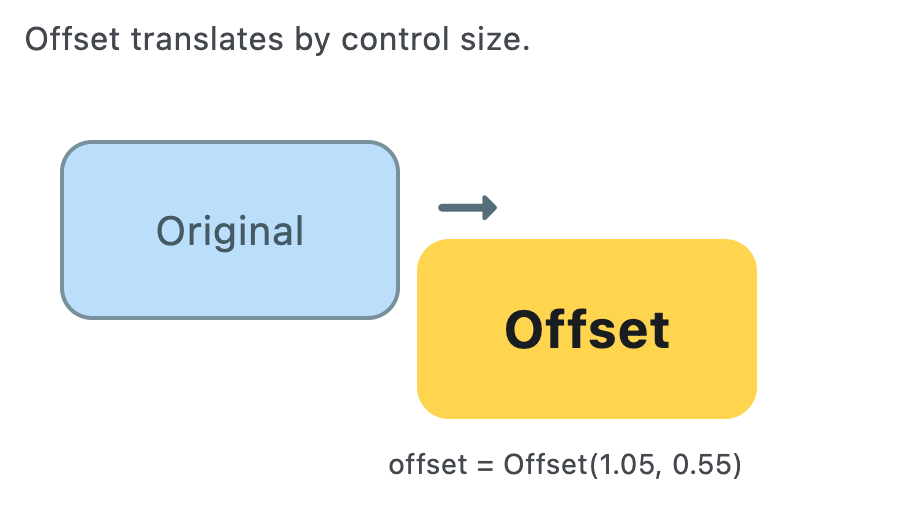

python
import flet as ft
def main(page: ft.Page):
page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
page.vertical_alignment = ft.MainAxisAlignment.CENTER
page.add(
ft.SafeArea(
content=ft.Stack(
width=460,
height=260,
controls=[
ft.Text(
"Offset translates by control size.",
left=12,
top=8,
size=16,
color=ft.Colors.ON_SURFACE_VARIANT,
),
ft.Container(
left=30,
top=70,
width=170,
height=90,
border_radius=16,
bgcolor=ft.Colors.BLUE_100,
border=ft.Border.all(2, ft.Colors.BLUE_GREY_400),
alignment=ft.Alignment.CENTER,
content=ft.Text(
"Original",
size=20,
color=ft.Colors.BLUE_GREY_700,
),
),
ft.Container(
left=30,
top=70,
width=170,
height=90,
border_radius=16,
bgcolor=ft.Colors.AMBER_300,
alignment=ft.Alignment.CENTER,
content=ft.Text("Offset", size=26, weight=ft.FontWeight.BOLD),
offset=ft.Offset(
x=1.05,
y=0.55,
filter_quality=ft.FilterQuality.MEDIUM,
),
),
ft.Icon(
ft.Icons.ARROW_RIGHT_ALT_ROUNDED,
left=212,
top=82,
size=44,
color=ft.Colors.BLUE_GREY_600,
),
ft.Text(
"offset = Offset(1.05, 0.55)",
left=194,
top=222,
size=14,
color=ft.Colors.ON_SURFACE_VARIANT,
),
],
),
)
)
if __name__ == "__main__":
ft.run(main)
python
from math import pi
import flet as ft
def card(title: str, color: str, matrix: ft.Matrix4) -> ft.Container:
return ft.Container(
width=220,
height=130,
border_radius=18,
bgcolor=color,
padding=12,
content=ft.Text(title, size=18, weight=ft.FontWeight.BOLD),
transform=ft.Transform(
matrix=matrix,
alignment=ft.Alignment.CENTER,
filter_quality=ft.FilterQuality.MEDIUM,
),
)
def main(page: ft.Page):
page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
page.scroll = ft.ScrollMode.AUTO
page.spacing = 20
perspective_tilt = (
ft.Matrix4.identity()
.set_entry(3, 2, 0.0018)
.rotate_x(-0.35)
.rotate_y(0.45)
.translate(0, -10, 0)
)
skew_and_rotate = ft.Matrix4.skew_y(0.28).rotate_z(-pi / 14)
mirrored_spin = ft.Matrix4.diagonal3_values(-1, 1, 1).rotate_z(pi / 10)
mix = ft.Matrix4.translation_values(24, -8, 0).multiply(
ft.Matrix4.rotation_z(pi / 16).scale(0.9, 0.9)
)
page.add(
ft.SafeArea(
content=ft.Column(
spacing=20,
horizontal_alignment=ft.CrossAxisAlignment.CENTER,
controls=[
ft.Text("Matrix4 transform recording + replay", size=24),
ft.ResponsiveRow(
controls=[
ft.Container(
col={"sm": 6, "md": 3},
content=card(
"Perspective tilt",
ft.Colors.CYAN_300,
perspective_tilt,
),
),
ft.Container(
col={"sm": 6, "md": 3},
content=card(
"Skew + rotate",
ft.Colors.AMBER_300,
skew_and_rotate,
),
),
ft.Container(
col={"sm": 6, "md": 3},
content=card(
"Mirror + spin",
ft.Colors.PINK_200,
mirrored_spin,
),
),
ft.Container(
col={"sm": 6, "md": 3},
content=card(
"Multiply chain",
ft.Colors.LIGHT_GREEN_300,
mix,
),
),
],
),
],
),
)
)
if __name__ == "__main__":
ft.run(main)
属性
| 名称 | 类型 | 默认值 | 说明 |
|---|---|---|---|
width | Optional[Number] | None | Imposed Control width in virtual pixels. |
height | Optional[Number] | None | Imposed Control height in virtual pixels. |
left | Optional[Number] | None | The distance that the child's left edge is inset from the left of the stack. Note: Effective only if this control is a descendant of one of the following: Stack control, overlay list. |
top | Optional[Number] | None | The distance that the child's top edge is inset from the top of the stack. Note: Effective only if this control is a descendant of one of the following: Stack control, overlay list. |
right | Optional[Number] | None | The distance that the child's right edge is inset from the right of the stack. Note: Effective only if this control is a descendant of one of the following: Stack control, overlay list. |
bottom | Optional[Number] | None | The distance that the child's bottom edge is inset from the bottom of the stack. Note: Effective only if this control is a descendant of one of the following: Stack control, overlay list. |
align | Optional[Alignment] | None | Alignment of the control within its parent. |
margin | Optional[MarginValue] | None | Sets the margin of the control. |
rotate | Optional[RotateValue] | None | Transforms this control using a rotation around its center. The value of rotate property could be one of the following types: * number - a rotation in clockwise radians. Full circle 360° is math.pi * 2 radians, 90° is pi / 2, 45° is pi / 4, etc. * Rotate - allows to specify rotation angle as well as alignment - the location of rotation center. Example: python ft.Image( src="https://picsum.photos/100/100", width=100, height=100, border_radius=5, rotate=Rotate(angle=0.25 * pi, alignment=ft.Alignment.CENTER_LEFT) ) |
scale | Optional[ScaleValue] | None | Scales this control along the 2D plane. Default scale factor is 1.0, meaning no-scale. Setting this property to 0.5, for example, makes this control twice smaller, while 2.0 makes it twice larger. Different scale multipliers can be specified for x and y axis, by setting Control.scale property to an instance of Scale class. Either scale or scale_x and scale_y could be specified, but not all of them. Example: python ft.Image( src="https://picsum.photos/100/100", width=100, height=100, border_radius=5, scale=ft.Scale(scale_x=2, scale_y=0.5) ) |
offset | Optional[OffsetValue] | None | Applies a translation transformation before painting the control. The translation is expressed as an Offset scaled to the control's size. So, Offset(x=0.25, y=0), for example, will result in a horizontal translation of one quarter the width of this control. Example The following example displays container at 0, 0 top left corner of a stack as transform applies -1 * 100, -1 * 100 (offset * control's size) horizontal and vertical translations to the control: python import flet as ft def main(page: ft.Page): page.add( ft.Stack( width=1000, height=1000, controls=[ ft.Container( bgcolor=ft.Colors.RED, width=100, height=100, left=100, top=100, offset=ft.Offset(-1, -1), ) ], ) ) ft.run(main) |
flip | Optional[Flip] | None | Flips this control horizontally and/or vertically. Set to an instance of Flip to mirror across x-axis, y-axis, or both. |
transform | Optional[Transform] | None | Applies a generic matrix transform to this control. Set to an instance of Transform with a recorded Matrix4 to describe arbitrary transform sequences. |
aspect_ratio | Optional[Number] | None | The aspect ratio of the control. It is defined as the ratio of width to height. Note: In current implementation, if aspect_ratio is set, width and height on the same control are ignored for final rendered size. |
animate_opacity | Optional[AnimationValue] | None | 启用 opacity 属性的隐式动画。 详见 此处. |
animate_size | Optional[AnimationValue] | None | 启用此控件尺寸的隐式动画。 If width or height is set, changes to those dimensions are animated. If neither dimension is set, changes to the control's natural size are animated instead. 详见 此处. |
animate_position | Optional[AnimationValue] | None | 启用定位属性（left、right、top、bottom）的隐式动画。 详见 此处. |
animate_align | Optional[AnimationValue] | None | 启用 align 属性的隐式动画。 详见 此处. |
animate_margin | Optional[AnimationValue] | None | 启用 margin 属性的隐式动画。 详见 此处. |
animate_rotation | Optional[AnimationValue] | None | 启用 rotate 属性的隐式动画。 详见 此处. |
animate_scale | Optional[AnimationValue] | None | 启用 scale 属性的隐式动画。 详见 此处. |
animate_offset | Optional[AnimationValue] | None | 启用 offset 属性的隐式动画。 详见 此处. |
size_change_interval | int | 10 | Sampling interval in milliseconds for on_size_change event. Setting to 0 calls on_size_change immediately on every change. |
expand | Annotated[Optional[Union[bool, int]], V.instance_of((bool, int))] | None | 指定此控件是否/如何扩展以填充父布局中的可用空间。 详见 此处. Note: Has effect only if the direct parent of this control is one of the following controls, or their subclasses: Column, Row, View, Page. Raises: ValueError: If it is not of type bool or int. |
expand_loose | bool | False | 允许控件在主轴方向上有可用空间时扩展，但不要求填满所有可用空间。 详见 此处. Note: 若 expand_loose 为 True，则仅当同时满足以下条件时生效： - expand 不为 None，且 - the direct parent of this control is one of the following controls, or their subclasses: Column, Row, View, Page. |
col | ResponsiveNumber | 12 | 若此控件的父控件是 ResponsiveRow，此属性用于决定该控件横跨多少个虚拟列。 可以是数字，也可以是为不同断点配置不同值的字典，例如 col={"sm": 6}。 0 表示在该断点下隐藏控件，不占用任何列。 默认横跨 12 个虚拟列。 \ |
opacity | Annotated[Number, V.between(0.0, 1.0)] | 1.0 | 定义控件的透明度，取值范围 0.0（完全透明）到 1.0（完全不透明）。 抛出异常：ValueError：若不在 0.0 到 1.0 的闭区间内。 |
tooltip | Optional[TooltipValue] | None | 鼠标悬停时显示的 tooltip。 |
badge | Optional[BadgeValue] | None | 显示在控件顶部的徽标。 |
visible | bool | True | Every control has visible property which is True by default - control is rendered on the page. Setting visible to False 完全阻止该控件（及其所有子控件）渲染到页面画布上. 隐藏的控件不能通过键盘或鼠标聚焦或选中，也不会触发任何事件。 |
disabled | bool | False | Every control has disabled property which is False by default - control and all its children are enabled. Note: The value of this property will be propagated down to all children controls recursively. Example: For example, if you have a form with multiple entry controls you can disable them all together by disabling container: python ft.Column( disabled = True, controls=[ ft.TextField(), ft.TextField() ] ) |
rtl | bool | False | 控件的文字方向是否为从右到左（RTL）。 |
data | Any | skip_ | 任意类型的自定义数据。 |
key | Optional['KeyValue'] | None | 用于在更新之间保持控件身份稳定的 key。 |
只读属性
| 名称 | 类型 | 默认值 | 说明 |
|---|---|---|---|
parent | Optional['BaseControl'] | — | The direct ancestor(parent) of this control. It defaults to None and will only have a value when this control is mounted (added to the page tree). Page 控件（树的根）为例外 —— 它始终 parent=None。 |
page | 'Page' | — | 此控件所属的页面。 |
事件
| 名称 | 类型 | 默认值 | 说明 |
|---|---|---|---|
on_size_change | Optional[EventHandler[LayoutSizeChangeEvent['LayoutControl']]] | None | Called when the size of this control changes. size_change_interval defines how often this event is called. |
on_animation_end | Optional[ControlEventHandler['LayoutControl']] | None | 动画结束时调用，可用于串联多个动画。 事件参数 data 属性包含动画的名称。 详见 此处. |
方法
| 名称 | 类型 | 默认值 | 说明 |
|---|---|---|---|
is_isolated | — | — | Return whether this control is marked as isolated. 被隔离的控件不会参与父级驱动的更新遍历，需要自行管理更新边界。 |
init | — | — | Called after control instance initialization and before the first build / update cycle. 可重写此钩子执行依赖于已初始化字段的轻量设置。 不要在这里调用 update()。 |
build | — | — | 在控件初始化期间调用一次，用于定义其子控件。 page 属性在此方法中可用。 |
before_update | — | — | 每次控件即将更新时调用。 Note: 不要在此处调用 update()。 |
before_event | — | — | 在事件处理器执行前拦截事件。 返回 False 取消分发，返回 True 或 None 则继续正常的事件处理。 |
did_mount | — | — | 在控件挂载到页面树之后调用。 可重写以启动需要已挂载页面的资源，例如订阅、定时器或服务监听。 |
will_unmount | — | — | 在控件从页面树移除之前调用。 可重写以释放 did_mount() 中创建的资源，例如订阅、定时器或外部句柄。 |
get_data_channel | — | — | Resolve the [DataChannel] allocated on the Dart side for this widget. Pattern: on_data_channel_open: Optional[ft.EventHandler[DataChannelOpenEvent]] = None def init(self): self.on_data_channel_open = self._on_open def _on_open(self, e): self._channel = self.get_data_channel(e.channel_id) Idempotent — the underlying Connection caches DataChannels by id, so repeated calls return the same instance. No error path: the id always comes from a framework-fired event, so by the time this runs the channel exists on both sides. |
update | None | — | 请求更新该控件的 UI。 在修改控件状态或属性后调用。 控件必须已挂载到页面，并且未被冻结。 |
